Zebra brand industrial-scale label printer
For Dymo label-printing options, ServiceDesk is deliberately coded to send a command telling the printer to print in landscape mode.
Zebra printers need to print in portrait mode.

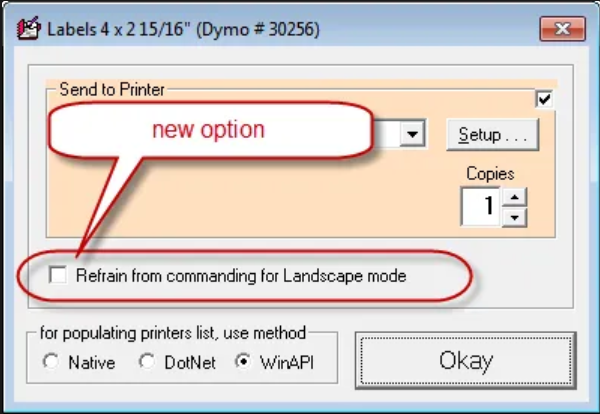

Enabling printing in landscape mode
To accommodate this, we added an option in the printer selection dialog box for this context:
From the printer dialogue window presented when printing labels, check the box labeled, 'Refrain from commanding for Landscape mode.'
With this option enabled you can print labels via an industrial-scale Zebra-brand label printer.
Zebra printers
Examples of Zebra industrial-scale label printers.
Zebra GX420D
Zebra ZT41142
Tested Labels
These labels were tested in our environment, and the optimal Preferences for the Zebra GX420D are noted below. You may experience varied results depending on your network and printer configuration.
Labels Tested for Zebra GX420D | ||||
Label Size | Seller | Amazon Link | SD Print Option | Zebra Preferences |
1.5x3.5 | Houselabels | https://www.amazon.com/dp/B0C7CN9NBW?ref=fed_asin_title&th=1 | Option S | Landscape |
3.5x1.5 | OfficeSmartLabels | https://www.amazon.com/dp/B00V5H6Q32?ref=fed_asin_title&th=1 | Option S with | Portrait |
3.5x1.5 | Best Branding | https://www.amazon.com/dp/B0CP4DNK4Q?ref=fed_asin_title&th=1 | Option P | Portrait |
4x2.5 | Houselabels | https://www.amazon.com/dp/B00CR6EBEG?ref=fed_asin_title&th=1 | Option J | Portrait |
3.5x1.5 | Option S with | Portrait | ||
1.125x3.5 | DYMO | https://www.amazon.com/dp/B00004Z64M?ref=fed_asin_title&th=1 | Option S | Landscape |
* denotes the best result if more than one option works | ||||
